Electropneumatic valve of switching on type VV-1113
PURPOSE
Electropneumatic valve of switching on type VV-1000 is designed for remote (electric) control pneumatic
drives of moving rail transportation, lokomotives, railway machines and mechanisms and also industrial devices.
Valve is designed for operation on compressed air, purified not rougher than the 10 grade of contamition
according to GOST 17433-80.
The working position of valve-vertical. Permissible deviation of valve axis from vertical is not more than 15°.
Mechanical wearability of valve - not less than 500 thousands of cycles .
Warrantly period of service - two years from the day of putting into operation, but not more than three years
from the date of manufacture.
SPECIEFICATIONS
|
Speciefications |
VV-1113 |
VV-1313 |
|
Rated voltage, V |
24; 75; 110 |
|
Nominal air pressure, kP |
630 |
|
Section of inlet pass, mm
2 |
10 |
|
Section of final pass, mm
2 |
10 |
16 |
|
The greatest frequency of inclusions at an o'clock |
3600 |
|
Power consumption, W |
25 |
|
Weight,kg |
0,9 |
Climatic modification and category
accommodadations in accordance with GOST 15150-69 |
U3 |
Degree of protection of the coil in accordance with
GOST 14254-80 |
IP55 |
Degree of protection of conclusions of the coil on
GOST 14254-80 |
IP00 |
Class of isolation of the coil accordance with
GOST Ð50324-92 |
"Â" |

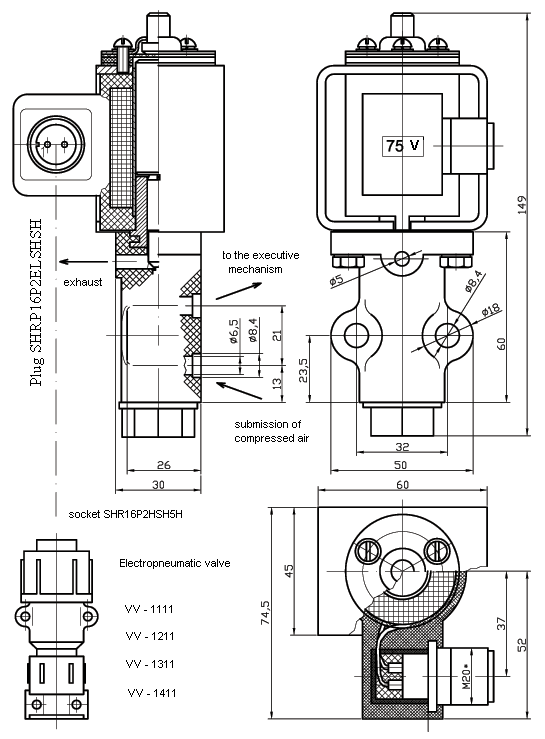

GABARIT AND MOUNTING DIMENSIONS
|
