Electronic controller of operator КМЕ-9

PURPOSE

          The circuit controller of the machinist electronic КМЭ-9 НКТМ.426471.073 It is intended for switching of control circuits on the set to algorithm for the purpose of maintenance starting a diesel locomotive from a place, a direction reversal and frequency of rotation of a cranked shaft of a diesel engine.
          The circuit controller is completing product of diesel engines-trains of type АС-4 and on-track machine ПТМ-630.

SPECIEFICATIONS

Voltage of a power line, V	27 (+20%,-30%)
Short-term a pressure procorf at diesel engine start-up	to 0,3Unom
Quantity of switched circuits	8
Switched voltage, V	27
The maximal switched current of keys (Jmax), А	8
Current of operation of protection of keys from an overload	1,5 Jmax
Quantity of positions of management	9(0...8)
Character of switching of positions, V	in turns
Rate of switching of positions in a set and dump mode	~1 sec
Climatic modification on GOST15150-69	UЗ
Range of working temperatures	-40°С...+50°C
Conditions of operation of operation of a product regarding influence mechanical factors in accordance with GOST17516.1-90	М25
Degree of protection in accordance with GOST14254-80	IP40

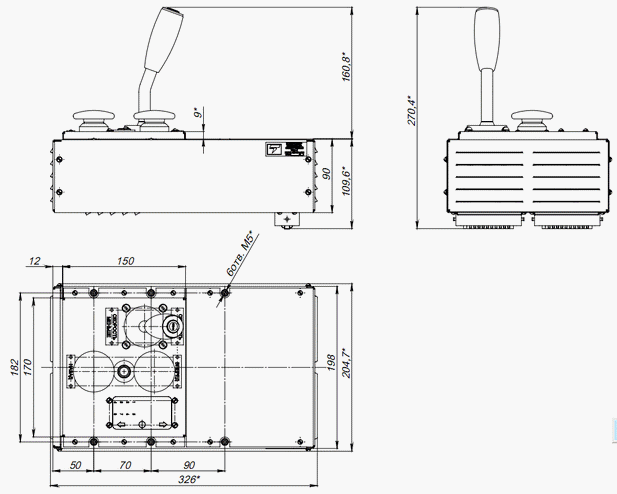

GABARIT AND MOUNTING DIMENSIONS
